DC-099 FPV/UAV DTV CAM Module




Ref. Price: US$249~369


DTV CAM is an all-new camera which outputs the captured HD video in digital TV signal. The core technology is based on open industrial standard EN 300-744 DVB-T, which can transmit compressed high-definition digital video over cable or air. All DVB-T compliant receivers, including SetTopBox, Digital TV, PC/NB USB DTV dongle, or DTV capture card can receive, watch and record the video from a DTV CAM without requiring any special adapter on each receiver nor deploying new cables, but using the existing standard antenna coaxial cable.
Note: DC-099 supports 70~950MHz bands.
 DC-099H supports 70~950MHz and 1.2G bands.

Features
Painless upgrade to full HD
Reuse existing coaxial cable deployment without any special requirement for cable & connecter. DVB-T signal is so robust that even a degraded and aged cable can be used to convey full HD signal perfectly.

Easy and friendly user experience
There is no lousy network IP configuration and no need to use a desktop or notebook PC. It’s just as easy as watching TV programs with a TV set or SetTopBox.

Long Distance
Easily transmit 1080p video over a single 5C2V/RG62 cable for at least 1000 meters long without adding any repeater.
For wireless applications, the line of sight transmission distance may reach 50~100 meters at 0dBm RF radiation power and up to several kilo meters at 30 dBm with an external PA (optional). The real distance depends on the antenna design and receiver quality.

Daisy-Chain Connection (Bus-Topology)
Multiple DTV CAM’s with different channel configurations can share a single cable. It can dramatically reduce the cable deployment cost and effort.

Mux multiple video streams
Support multiple video streams at the same time, for example 1080P/720P, D1, CIF, and JPG…

Real time protocol and Low latency
No frame drop in QEF (Quasi-Error-Free) condition, and low transmission latency

Standard 42mmx42mm form factor design
Compatible to standard bullet housings.
Housing option available from Hides,

11 11
Order Information:


Model


Description

DC-099-BB

12

DC-099 bare bone
70MHz-950 MHz band support

DC-099-CU

12

DC-099 Cubic housing w/ stand
70MHz-950 MHz band support

DC-099-BU

13

DC-099 Bullet housing w/ stand
70MHz-950 MHz band support

DC-099H-BB

13

DC-099 bare bone
70MHz-950 MHz/1.2GHz band support

DC-099-PA-900

14

DC-099 bare bone with 900 MHz band PA and antenna

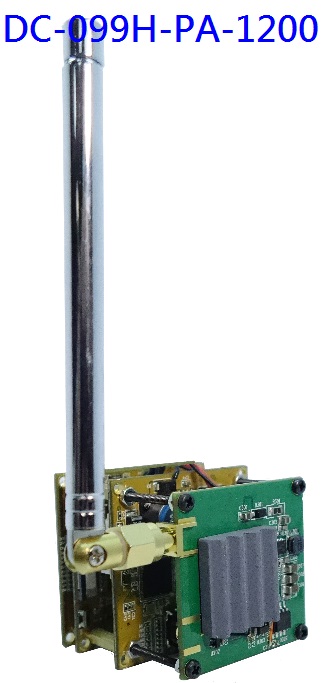

DC-099H-PA-1200

15

DC-099 bare bone with 1.2GHz band PA with telescopic antenna

General Camera Specifications:


Video

Image Sensor

1/2.5” CMOS Sensor

Resolution

2 Megapixel 1920 x 1080

Default Video Streams

HD/SD Dual Streams:
a. 1080P/24FPS x 1
b. 480P or 576P/24FPS x 1

Video Compression

H.264 up to 1920x1080x30P

Video Transmission Protocol

DVB-T

Shutter Control

AUTO, 1/60 ~ 1/15000

Auto Gain Control

AUTO

White Balance

AUTO

Back Light Compensation

AUTO

Day & Night

AUTO

Scanning System

Progressive

S/N Ratio

44dB

Lens

Board Mount3.5 mm-10mm

Audio

Mono 16 KHz AAC audio

Power

Power Supply

DC 12V/AC 24V

Power Consumption

DC-099

0.35A@12V

DC-099H

0.35A@12V

DC-099-PA900

0.7A@12V

DC-099H-PA1200

0.7A@12V

Dimension

30mmx 42mm x 42mm (LxWxH, excluding lens and power adaptor)

Weight

DC-099/DC-099H

66g

DC-099-PA-900

91g (w/ PA and antenna)

Operating Temperature

-25° C (-13° F) to 50° C (122° F)







DVB-T RF Transmitter Specifications:


Parameter

Value

RF connector

On-board: 1.0/2.3 DIN female 50-Ω
External cable: BNC-type 50-Ω connecter

Bandwidth

1/2/3/4/5/6/7/8 MHz

Constellation

QPSK and 16QAM

FFT

2K, 8K

Code rate

1/2, 2/3, 3/4, 5/6, 7/8

Guard interval

1/4, 1/8, 1/16 or 1/32
(In 16QAM mode, only Guard Interval 1/4 and 1/8 are supported)

Frequency range

DC-099:70 .. 950MHz ***
DC-099H:70 .. 950MHz/1200~1350MHz
Channel setting by Rotary switch (0~F) or Return Channel Configuration****

RF Output Level

DC-099

70~950 MHz: 0 dBm (108 dBuV)

DC-099H

70~950 MHz: 0 dBm (108 dBuV)
1200-1350 MHz, -5 dBm (103 dBuV)

DC-099-PA900

850~950 MHz: 20 dBm (128 dBuV)

DC-099H-PA1200

1200~1350 MHz:14 dBm (122 dBuV)

Digital Attenuator

Range:+6/-25dB* , Step size 1dB

MER

>30dB Typically

Spectrum Shoulder (Adjacent channel)

45dB

Phase noise

<-92dBc @ 10kHz

Carrier Suppression

>42dB

Specifications are subject to change without prior notice.
*: There could be MER loss/BER increment in high gain/attenuation level.
**** Rotary Switch Channel Mapping Table
DC-099/DC-099H  Bandwidth 7/8 MHz Channel Table


0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

142.4

156.5

177.5

191.5

205.5

291.5

474

490

506

522

538

554

570

586

602

618

7

7

7

7

7

7

8

8

8

8

8

8

8

8

8

8

DC-099-PA900 900MHz band Bandwidth 6 MHz Channel Table


0*

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

905*

911

917

923

935

947

797

803

815

827

839

851

863

875

887

899

6*

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

DC-099-PA1200 1200MHz band Bandwidth 6 MHz Channel Table


0*

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

1200*

1210

1220

1230

1240

1250

1260

1270

1280

1290

1300

1310

1220

1330

1340

1350

6*

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

A bundled PC/Laptop USB UART dongle kit and Windows configuration tool are available. Users may configure the channel frequency (range 70~950MHz, in 1 KHz step) and bandwidth (range 1~8 MHz, in 1 MHz step) as they needs.
DTV CAM Application Scenario-FPV
16

DTV CAM Application Scenario-Wired
17

System Deployment Example – Bus Topology
18

DTV CAM Application – Live Video Broadcast
19

Mobile DTV CAM Application – Live Video Monitor FPV/FPU
1a
