BR-101EH DVB-T Digital Gap Filler/Repeater
Ref.
Price: US$239
Features
Hardware modulator and demodulator support EN 300-744 DVB-T /ARIB STD-B31 ISDB-T/ABNT NBR 15601 ISDB-Tb reception and retransmission.
TV RF signal is demodulated to a transport stream (TS), and then modulated to a new TV RF signal with fully hardware digital processing without any MER loss or any noise addition.
Built-in 31-way PID filters and PCR re-stamp.
Infinite digital TV signal extension can be achieved with
BR-10.
BR-101E supports EN 300-744 DVB-T while BR-101J supports ARIB STD-B31 ISDB-T/ABNT NBR 15601 ISDB-Tb.
BR-101EH
is a special edition of BR-101E for HAM TV application; BR-101EH
can support up to 1.2G band with high RF power (-18dBm), but
2’nd and 3’rd harmonic in 950MH~1350MHz band is not well filtered.
Demodulator
(Receiver):
BR-101E supports Digital Terrestrial DVB-T Receptions (5/ 6 / 7 / 8 MHz bandwidth) and amateur HAM DVB-T TV reception (2/3/4 MHz bandwidth)
BR-101J supports Digital Terrestrial ISDB-T/ISDB-Tb Receptions (6 / 7 MHz bandwidth)
Modulator (Transmitter):
Direct digital conversion to 50~950MHz and 1200~1350 MHz
for excellent signal quality
BR-101E supports configurable bandwidth from 2MHz to 8 MHz.
BR-101J supports configurable bandwidth 6/7/8 MHz.
Channel Adaptation:
The input and out channels are totally independent. The new
(Tx) channel’s frequency, bandwidth, code rate, guard interval,
FFT, constellation can be totally different from the original
(Rx) one’s.
BuiltDirect digital conversion to 50~950MHz and 1200~1350
MHz for excellent signal quality
If the input channel data rate is less than the output, auto
null-packet insertion will be done in the modulator.
If the input channel data rate is larger, setting PID filter
properly to filter out unwanted packets may avoid data overflow.
PCR re-stamp mechanism is supported to keep the correctness
of PCR when PID’s filtered or null packets inserted.

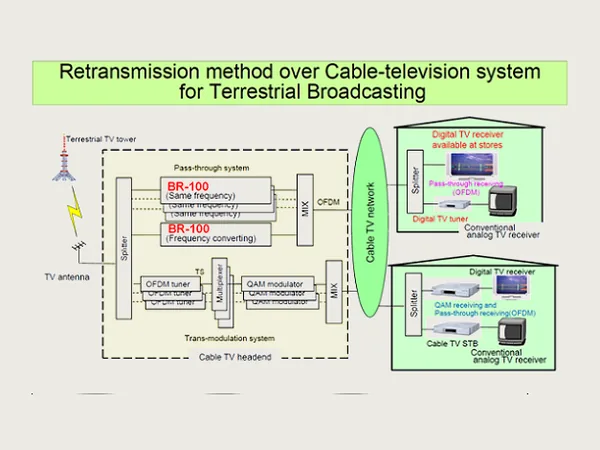

BR-101 - Applications
DVB-T/ISDB-T
digital TV signal repeater/extender
DVB-T/ISDB-T closed circuit TV gap filler
• Air to Cable/Cable to Air/Air to Air/Cable to Cable TV signal
repeater
| Parameter |
Value | |||
| RF connector |
Tx:
75-Ω F (female) connecter |
|||
| Bandwidth |
Transmitter |
BR-101E | DVB-T 2/3/4/5/6/7/8 MHz |
|
| BR-101J | ISDB-T/Tb 6/7/8 MHz |
|||
| Receiver | BR-101E | DVB-T 2/3/4 MHz or 5/6/7/8MHz *1 |
||
| BR-100J | ISDB-T/Tb 6/7 MHz |
|||
| FFT |
2K, 4K, 8K | |||
| Constellation |
64QAM/16QAM/QPSK |
|||
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
| Guard interval | 1/4, 1/8, 1/16 or 1/32 | |||
| Frequency range | Transmitter | 50~950MHz and 1200~1350MHz step size 1KHz |
||
| Receiver | 50~950MHz, step size 1KHz | |||
| RF Output Level | -4 dBm (104 dBuV)
@ 50~950MHz BR-101E/J:-45dBm @ 1.2G band *2 BR-101EH:-18dBm @ 1.2G band |
|||
| Digital Attenuator | Range:+6/-25dB*3 , Step size 1dB | |||
| MER | 28~33 dB Typically @50~950MHz 25~30 dB Typically @1200~1350MHz |
|||
| Spectrum Shoulder (Adjacent channel) | 45dB | |||
| Phase noise | <-92dBc @ 10kHz | |||
| Carrier Suppression | >42dB | |||
| USB port | USB 2.0 or USB 1.1 | |||
| Power | 5V DC 390mA | |||
| Dimensions (LxWxH) |
75x
30 x 15mm (excluding power adaptor) |
|||
*1 : Bandwidth
2/3/4 MHz or 5/6/7/8 MHz are selected by a jumper.
*2 :BR-101E/J U-band low pass filter is designed @950MHz, so 1.2G band power is filtered to such a low level.
*3:There could be MER loss in high gain/attenuation level.

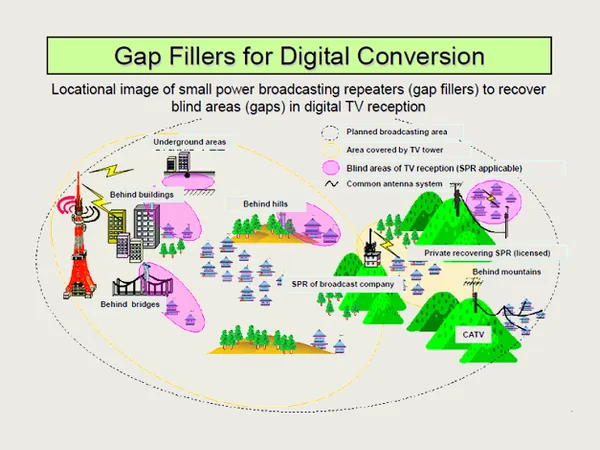

Gap Filler Application
