HV-320E FPV Full HD Video Transmitter (100MHz~2500MHz)

HDMI/CVBS to DVB-T/ISDB-T/ISDB-Tb Modulator

HV-320 is the most cost-effective solution to transmit long range HD video for FPV application with digital TV technology.
The video input source from either HDMI/DVI or composite (CVBS) is encoded in H.264 streams, modulated with the open industrial standard EN 300-744 DVB-T/ARIB STD-B31 ISDB-T/ABNT NBR 15601 ISDB-Tb*, and then transmitted over cable or air.
*HV-320E supports EN 300-744 DVB-T modulation while HV-320J supports ARIB STD-B31 ISDB-T/ABNT NBR 15601 ISDB-Tb modulation.
All DVB-T/ISDB-T/ ISDB-Tb compliant receivers**, including SetTopBox, Digital TV, PC/NB USB DTV dongle, or DTV capture card can receive, and watch the video from a HV-320 via the standard coaxial cable or antenna.
**HV-320 supports only H.264 video encoding, so the receiver should be able to decode H.264 stream while old DVB-T/ISDB-T TV’s may not.

Features
High Performance Wide Frequency Rage Support
Direct digital conversion to 100..2500 MHz for excellent signal quality
Professional grade modulation error rate (MER)

Flexible Bandwidth Option
In DVB-T mode, 1MHz~8MHz Bandwidth options are supported.

UART Digital Data Mux

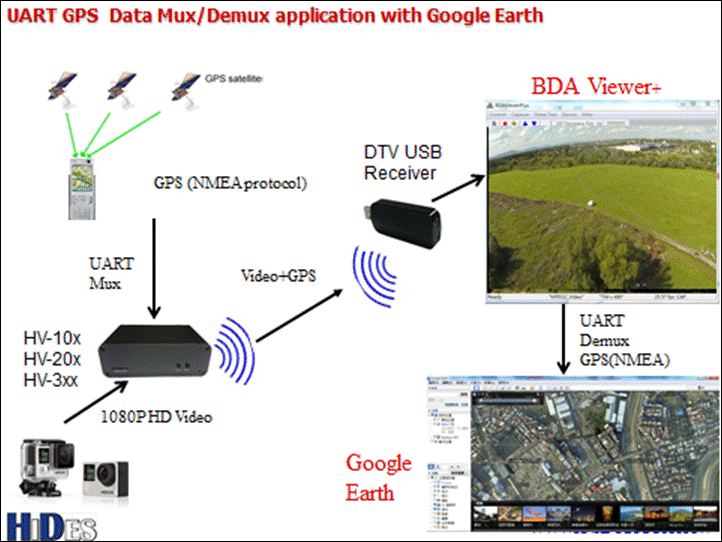

HV-320 supports UART data mux feature. GPS or aviation data can be multiplexed in the transmitted stream from HV-320’s UART port. Besides audio and video, the receiver can decode the received UART data for further data processing.
The communication parameters for the data mux UART port are configurable.

Security for anti-eavesdropping
Support both RF layer and TS data layer encryption.

Low Cost HD Video Distribution
Compliant to existing HD TV sets, no extra adapter required, and no restriction on the number of receivers. All the peripherals like splitter, amplifier, connector…etc are the same as those for regular TV.
In DVB-T mode, 1MHz~8MHz Bandwidth options are supported.

Versatile video inputs
Support HDMI/DVI and composite (CVBS) video input.

Easy to Configure
Channel number can be switched with the IR RC or onboard push buttons easily.
*The channel list mapping is user configurable (channel number -> frequency/bandwidth)
More advanced configurations can be set from an external host like PC/NB thru serial port interface. UART control protocol and API/SDK available on request.

Robust, Reliable and Long Distance
Easily transmit 1080p video over a single 3C2V/RG59 cable for at least 500 meters long without adding any repeater.
For wireless applications, the line of sight transmission distance may reach 50~100 meters at 0dBm RF radiation power and up to several kilo meters at 30 dBm with an external PA. The real distance depends on the antenna design and receiver quality.
Differential RF output is also available for RF signal distribution with twisted pairs (telephone or Ethernet RJ-45) instead of heavy coaxial cables.

Daisy-chain Connection (Bus-Topology)
Multiple HV-320’s with different channel configurations can share a single cable. It can dramatically reduce the cable deployment cost and effort.

Real time protocol and Low latency
No frame drop in QEF (Quasi-Error-Free) condition, and low transmission latency
*With HV-120/HV-110, the latency for 1080P HD is about 250mS

Order Information:

Model	Features
HV-320E	DVB-T (H.264 only), channel frequency range 100-2500MHz
HV-320E-PA430	DVB-T (H.264 only), channel frequency range 100-2500Hz *With 400~500 MHz band power amplifier, >20dBm average OFDM output**
HV-320E-PA700	DVB-T (H.264 only), channel frequency range 100-2500Hz *With 500~700 MHz (TVWS) band power amplifier, >20dBm average OFDM output**
HV-320E-PA900	DVB-T (H.264 only), channel frequency range 100-2500Hz *With 800~950MHz band power amplifier , >20dBm average OFDM output**
HV-320E-PA1200	DVB-T (H.264 only), channel frequency range 100-2500Hz With 1.2G band power amplifier , *>20dBm average OFDM output**
HV-320E-PA2400	DVB-T (H.264 only), channel frequency range 100-2500Hz With 2.4G band power amplifier, *>20dBm average OFDM output**
HV-320J	ISDB-T (H.264 only), channel frequency range 100-2500MHz

*the PA output power designated is average power for OFDM output, while the peak power for sine tone output is around 30dBm, 1W.

General Specifications:

Input	Video: CVBS, HDMI 1.3 Audio: Stereo line-in or HDMI PCM audio-in
Compression	Video: H.264 Audio: AAC or MPEG
Resolution	Input	CVBS	720x480x30I (NTSC, D1) 720x576x25I (PAL, D1)
		HDMI	720x480x30I (NTSC, D1) 720x576x25I(PAL, D1) 1280x720x50I/1280x720x50P 1280x720x60I/1280x720x60P 1920x1080x24P 1920x1080x50I/1920x1080x50P 1920x1080x60I/1920x1080x60P
Video Output	Compression:H.264 Frame size: 720x480x30P (NTSC, D1) 720x576x25P (PAL, D1) 1280x720x25P 1280x720x30P 1920x1080x24P 1920x1080x25P 1920x1080x30P Note: the output frame size is the same as the input, no scale-up or scale-down feature supported
Power	HV-320 without PA			5 V or 6~16V DC 1420 mA@5V 470mA@12V
	HV-320-PA430 HV-320-PA700			12V DC 850mA@12V
	HV-320-PA900 HV-320-PA1200 HV-320-PA2400			5V or 12V DC 2050mA@5V 720mA@12V
Dimension WxDxH	W(105 mm) x D(75 mm) x H(35 mm) (Bare bone PCBA size: 100mmx70mm)
Weight	175g (Bare bone PCBA weight 55g)
Operating Temperature	-10℃ ~ 60℃

Digital TV RF Transmitter Specifications:

Parameter	Value
TV Standard	HV-320E				DVB-T EN-300 744
	HV-320J				ISDB-T ARIB STD-B31 ISDB-Tb ABNT NBR 15601
RF connector	50-Ω SMA connecter
Bandwidth	HV-320E				1/2/3/4/5/6/7/8 MHz
	HV-320J				6MHz
FFT	2K, 4K, 8K
Code rate	1/2, 2/3, 3/4, 5/6, 7/8
Guard interval	1/4, 1/8, 1/16 or 1/32
Frequency range	100~2500MHz, step size 1KHz
Segment & Layer	HV-320E				n/a
	HV-320J				13 Seg
Time Interleaver	HV-320E				n/a
	HV-320J				Not supported
RF Output Level (dBm)
Hv-320E/HV-320J **	Frequency	177.5 MHz	474 MHz	666 MHz		915 MHz	1250 MHz	2450 MHz
	Max	6.5	6.5	6.5		5.5	5.5	0
HV-320E-PA430 HV-320J-PA430	400~500MHz +20 dBm (with 400~500MHz Power Amplifier)
HV-320E-PA700 HV-320J-PA700	500~700MHz +20 dBm (with 500~700MHz Power Amplifier)
HV-320E-PA900 HV-320J-PA900	800~950MHz +20 dBm (with 900MHz Power Amplifier)
HV-320E-PA1200 HV-320J-PA1200	1200~1350Mz +20 dBm(with 1.2G Power Amplifier)
HV-320E-PA2400 HV-320J-PA2400	2400~2500Mz +20 dBm(with 2.4G Power Amplifier)
Digital Gain/Attenuator for Fine Tuning	range: +0dB~-25dB , Step size 1dB Default: -5dB
MER	Typically, @-5 dB attenuation by ADRF6755 >38dB@V-band >38dB@470-950 MHz >35dB@950-1900MHz >33dB@1900-2500MHz (>25dB with 700M/900M/1.2G/2.4G +20 dBm output PA)
Spectrum Shoulder (Adjacent channel)	>48dB
Phase noise	<-92dBc @ 10kHz
Carrier Suppression	>42dB
