FPV/UAV DTV CAM 攝影機模組
06 · DTV 攝影機系列
特色
- 01 輕鬆升級至全高畫質
— 可沿用既有的同軸纜線佈線，對纜線與接頭無任何特殊要求。 DVB-T 訊號極為強韌，即使是劣化老舊的纜線，也能完美傳送全高畫質訊號。 - 02 操作簡單直覺 — 不需設定網路 IP，也不必接桌上型或筆記型電腦。就像用電視機或機上盒看電視節目一樣簡單。
- 03 長距離傳輸 — 只需一條 5C2V/RG62 纜線即可輕鬆傳送 1080p 影像達至少 1000 公尺，中途無需加裝任何轉發器。用於無線應用時，在 0dBm RF 輻射功率下視距傳輸距離可達 50~100 公尺，若外接 PA（選購）在 30 dBm 下可達數公里。實際距離取決於天線設計與接收機品質。
- 04 串接佈線（匯流排拓撲） — 多台設定為不同頻道的 DTV CAM 可共用同一條纜線，大幅降低佈線的成本與工時。
- 05 多路影像串流多工 — 可同時支援多路影像串流，例如 1080P/720P、D1、CIF 與 JPG…
- 06 即時協定與低延遲 — 在 QEF（準無誤碼）條件下不會掉幀，且傳輸延遲低。

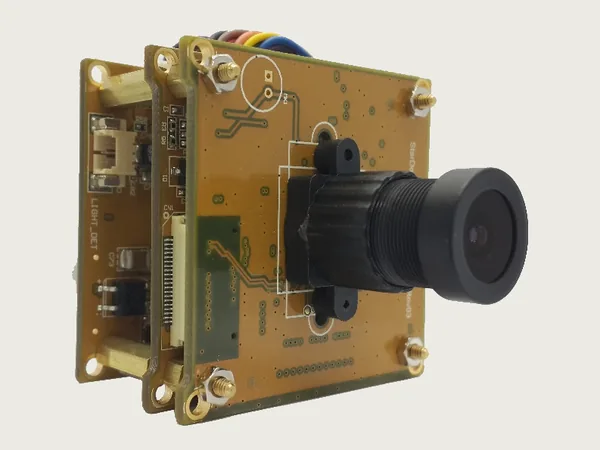

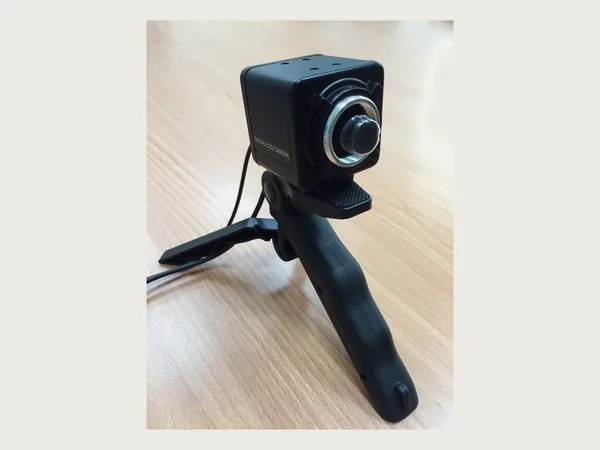

- 07 標準 42mmx42mm 尺寸規格設計 — 相容於標準槍型（bullet）機殼。HiDes 亦提供機殼選購。
- 08 PC 設定工具 — 提供另提供 PC／筆電 USB UART 轉接器套件與 Windows 設定工具。使用者可依需求設定頻道頻率（範圍 70~950MHz，以 1 KHz 為級距）與頻寬（範圍 1~8 MHz，以 1 MHz 為級距）。
規格
General Camera Specifications
- Image Sensor
- 1/2.5” CMOS Sensor
- Resolution
- 2 Megapixel 1920 x 1080
- Default Video Streams
HD/ SD Dual Streams: a. 1080P/24FPS x 1 b. 480P or 576P/24FPS x 1 - Video Compression
- H.264 up to 1920x1080x30P
- Video Transmission Protocol
DVB-T - Shutter Control
- AUTO, 1/60 ~ 1/15000
- Auto Gain Control
- AUTO
- White Balance
- AUTO
- Back Light Compensation
- AUTO
- Day & Night
- AUTO
- Scanning System
- Progressive
- S/N Ratio
- 44dB
- Lens
Board Mount 3.5 mm-10mm - Audio
- Mono 16 KHz AAC audio
- Power Supply
- DC 12V/AC 24V
- Power Consumption
DC-099 : 0.35A@12V;DC-099H : 0.35A@12V;DC-099-PA900 : 0.7A@12V;DC-099H-PA1200 : 0.7A@12V- Dimension
- 30mm x 42mm x 42mm (LxWxH, excluding lens and power adaptor)
- Weight
DC-099 /DC-099H : 66g;DC-099-PA-900 : 91g (w/ PA and antenna)- Operating Temperature
- -25° C (-13° F) to 50° C (122° F)
DVB-T RF Transmitter Specifications
- RF connector
On-board: 1.0/2.3 DIN female 50-Ω ; External cable:BNC-type 50-Ω connector- Bandwidth
- 1/2/3/4/5/6/7/8 MHz
- Constellation
- QPSK and 16QAM
- FFT
- 2K, 8K
- Code rate
- 1/2, 2/3, 3/4, 5/6, 7/8
- Guard interval
- 1/4, 1/8, 1/16 or 1/32 (In 16QAM mode, only Guard Interval 1/4 and 1/8 are supported)
- Frequency range
DC-099 : 70 .. 950MHz;DC-099H : 70 .. 950MHz/1200~1350MHz. Channel setting by Rotary switch (0~F) or Return Channel Configuration- RF Output Level
DC-099 : 70~950 MHz 0 dBm (108 dBuV);DC-099H : 70~950 MHz 0 dBm (108 dBuV),1200-1350 MHz -5 dBm (103 dBuV);DC-099-PA900 : 850~950 MHz 20 dBm (128 dBuV);DC-099H-PA1200 : 1200~1350 MHz 14 dBm (122 dBuV)- Digital Attenuator
- Range: +6/-25dB, Step size 1dB
- MER
- >30dB Typically
- Spectrum Shoulder (Adjacent channel)
- 45dB
- Phase noise
- <-92dBc @ 10kHz
- Carrier Suppression
- >42dB
Rotary Switch Channel Mapping Table — DC-099 /DC-099H Bandwidth 7/8 MHz Channel Table
- 0
- 142.4 MHz (7 MHz BW)
- 1
- 156.5 MHz (7 MHz BW)
- 2
- 177.5 MHz (7 MHz BW)
- 3
- 191.5 MHz (7 MHz BW)
- 4
- 205.5 MHz (7 MHz BW)
- 5
- 291.5 MHz (7 MHz BW)
- 6
- 474 MHz (8 MHz BW)
- 7
- 490 MHz (8 MHz BW)
- 8
- 506 MHz (8 MHz BW)
- 9
- 522 MHz (8 MHz BW)
- A
- 538 MHz (8 MHz BW)
- B
- 554 MHz (8 MHz BW)
- C
- 570 MHz (8 MHz BW)
- D
- 586 MHz (8 MHz BW)
- E
- 602 MHz (8 MHz BW)
- F
- 618 MHz (8 MHz BW)
DC-099-PA900 900MHz band Bandwidth 6 MHz Channel Table
- 0
- 905 MHz (6 MHz BW)
- 1
- 911 MHz (6 MHz BW)
- 2
- 917 MHz (6 MHz BW)
- 3
- 923 MHz (6 MHz BW)
- 4
- 935 MHz (6 MHz BW)
- 5
- 947 MHz (6 MHz BW)
- 6
- 797 MHz (6 MHz BW)
- 7
- 803 MHz (6 MHz BW)
- 8
- 815 MHz (6 MHz BW)
- 9
- 827 MHz (6 MHz BW)
- A
- 839 MHz (6 MHz BW)
- B
- 851 MHz (6 MHz BW)
- C
- 863 MHz (6 MHz BW)
- D
- 875 MHz (6 MHz BW)
- E
- 887 MHz (6 MHz BW)
- F
- 899 MHz (6 MHz BW)
DC-099-PA1200 1200MHz band Bandwidth 6 MHz Channel Table
- 0
- 1200 MHz (6 MHz BW)
- 1
- 1210 MHz (6 MHz BW)
- 2
- 1220 MHz (6 MHz BW)
- 3
- 1230 MHz (6 MHz BW)
- 4
- 1240 MHz (6 MHz BW)
- 5
- 1250 MHz (6 MHz BW)
- 6
- 1260 MHz (6 MHz BW)
- 7
- 1270 MHz (6 MHz BW)
- 8
- 1280 MHz (6 MHz BW)
- 9
- 1290 MHz (6 MHz BW)
- A
- 1300 MHz (6 MHz BW)
- B
- 1310 MHz (6 MHz BW)
- C
- 1220 MHz (6 MHz BW)
- D
- 1330 MHz (6 MHz BW)
- E
- 1340 MHz (6 MHz BW)
- F
- 1350 MHz (6 MHz BW)
-
DC-099 supports 70~950MHz bands. -
DC-099H supports 70~950MHz and 1.2G bands. - Specifications are subject to change without prior notice.
-
There could be MER loss/ BER increment in high gain/ attenuation level.
