HV-101
全高清 DVB-T 調製器

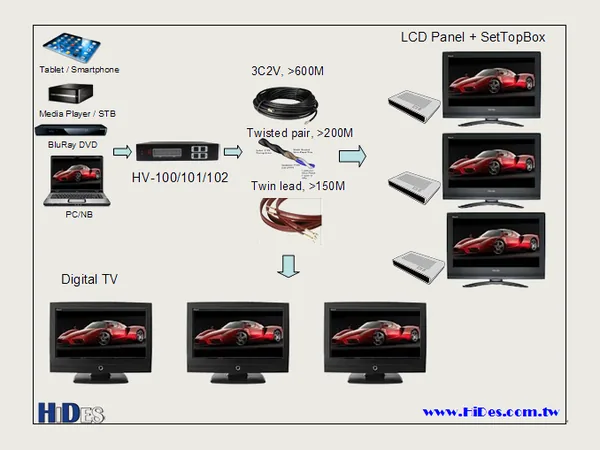

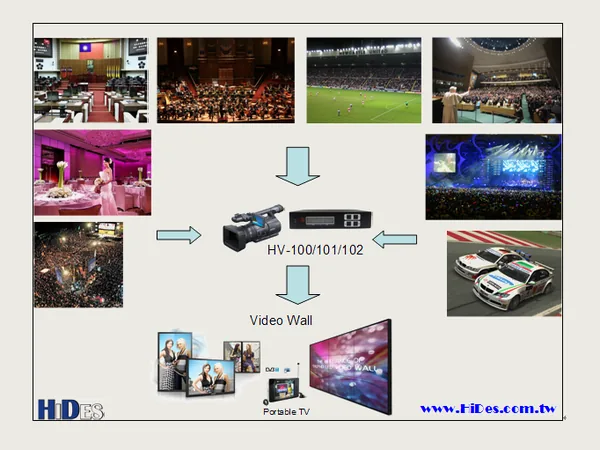

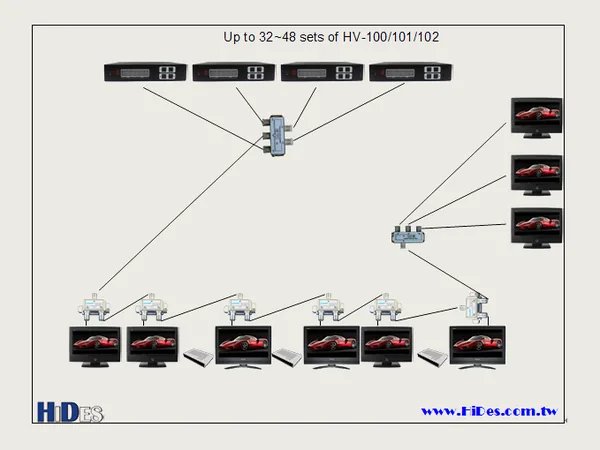

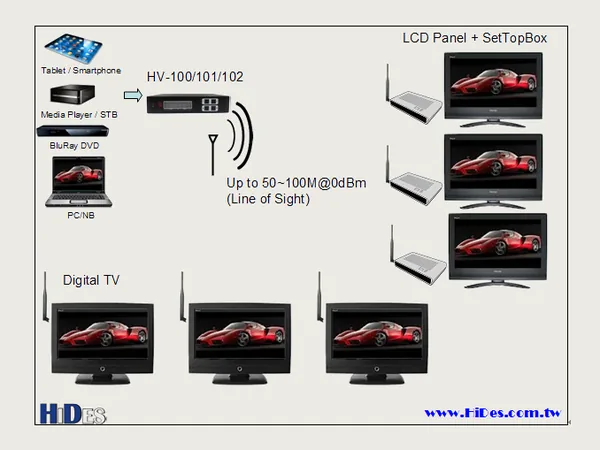

HV-100 系列的全高清影音傳輸器，支援 VGA 與色差（YPbPr）影像輸入。透過既有同軸纜線，把 HDMI 等級的影像送到數量不限的標準 DVB-T 接收設備——支援 H.264／MPEG2 高畫質與 MPEG2 標準畫質，相容於既有電視與機上盒。
2/3/4/5/6/7/8 MHz · DVB-T EN-300 744 · DC 9–24V Power Consumption 0.7A@12V
產品資料 — HV-101
04 · DVB-T 全高清調製器
特色
- 01 Low
- 02 Cost HD Video Distribution
- 03 Support
- 04 Easy to Configure
- 05 More
- 06 Robust, Reliable and Long Distance
- 07 For
- 08 Differential
規格
General Specifications
- Input
- Video: VGA , Component (YPbPr) Audio: Stereo line-in
- Compression
- Video: H.264 or MPEG2 Audio: AAC or MPEG
- Resolution
- Input / YPbPr / 1920x1080x60P 1920x1080x60I/1920x1080x50I 1280x720x60P/1280x720x50P 720x480x60P (NTSC, D1, Progressive) 720x576x50P (PAL, D1, Progressive)
- Resolution — VGA
- 1920x1080x60P 1280x1024x60P 1280x720x60P 800x600x60P 640x480x60P
- Resolution — Output — H.264
- 1920x1080x25P/1920x1080x30P 1600x1080x25P/1600x1080x30P 1440x1080x25P/1440x1080x30P 1280x1080x25P/1280x1080x30P 1280x1024x30P1280x720x25P/1280x720x30P 800x600x30P 704x576x25P (PAL, D1) 704x480x30P (NTSC, D1) 640x480x30P 352x576x25P (PAL, Half D1) 352x480x30P (NTSC, Half D1) *Note1&2
- Resolution — Output — MPEG2
- 1600x1080x25P 1440x1080x25P/1440x1080x30P 1280x1080x25P/1280x1080x30P 1280x1024x30P 1280x720x25P/1280x720x30P 800x600x30P 704x576x25P (PAL, D1) 704x480x30P (NTSC, D1) 640x480x30P 352x576x25P (PAL, Half D1) 352x480x30P (NTSC, Half D1) *Note1&2
- Power
- DC 9–24V Power Consumption 0.7A@12V
- Dimension WxDxH
- 195mmx125mmx40mm
- Weight
- 735g
- Operating Temperature
- -10°C ~ 60°C
Digital TV RF Transmitter Specifications
- TV Standard — HV-101E
- DVB-T EN-300 744
- TV Standard — RF connector
- 75-Ω F-type connector and two-wire terminal for twisted pairs (differential RF output)
- Bandwidth — HV-101E
- 2/3/4/5/6/7/8 MHz
- Bandwidth — FFT
- 2K, 8K
- Code rate
- 1/2, 2/3, 3/4, 5/6, 7/8
- Guard interval
- 1/4, 1/8, 1/16 or 1/32
- Frequency range
- 50–950 MHz, 1200–1350 MHz step size 1 KHz DVB-T channels: VHF 6M BW/UHF 6M BW: Channel: CH7~CH83 VHF 7M BW/UHF 7M BW: Channel: CH5~CH69 VHF 8M BW/UHF 8M BW: Channel: CH5~CH69
- Segment & Layer — HV-101E
- n/a
- Segment & Layer — Time Interleaver — HV-101E
- n/a
- Time Interleaver — RF Output Level
- 50-950 MHz -3 dBm (105 dBuV) typically 1200-1350 MHz -30~-40 dBm (68–78 dBuV) typically (Differential output less by 6–7 dB)
- Digital Gain/Attenuator for Fine Tuning
- Range: +5 dB~-10 dB , Step size 1 dB
- MER
- 50–950 MHz, 35 dB Typically 1200–1350 MHz, 30 dB Typically
- Spectrum Shoulder (Adjacent channel)
- 45 dB
Phase noise
- Carrier Suppression
- >42 dB
- Note1: output
- Note2: For VGA-input,
各型號供貨狀態不一——現售品項請見 eBay 商店；每頁皆附舊網站原始介紹連結。 原始產品頁 →
