HV-102J
全高清 ISDB-T/Tb 調製器

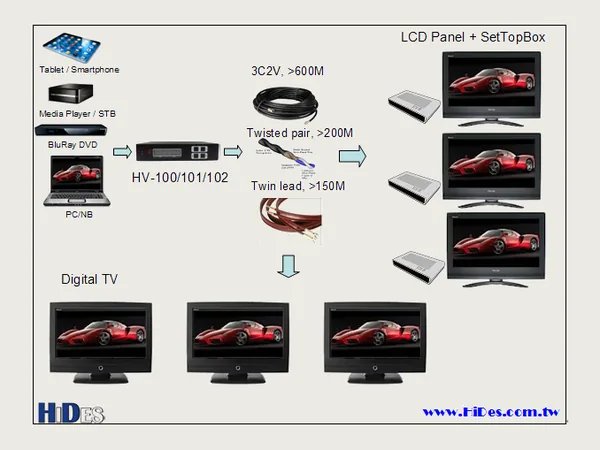

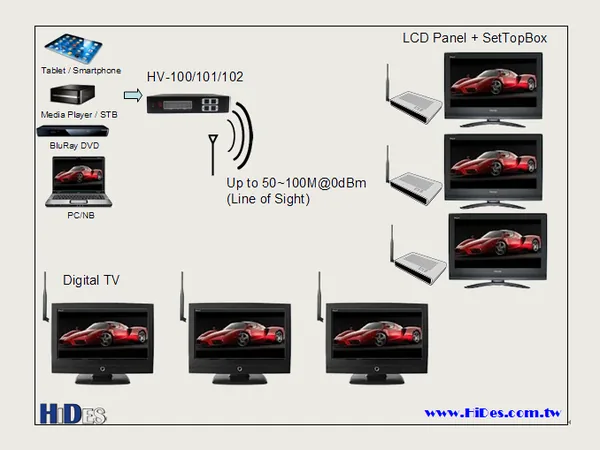

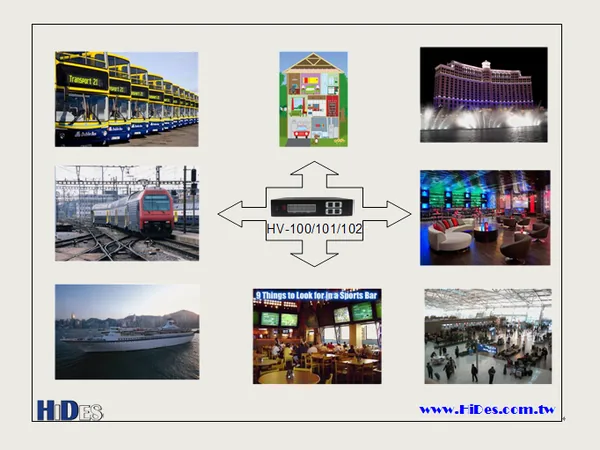

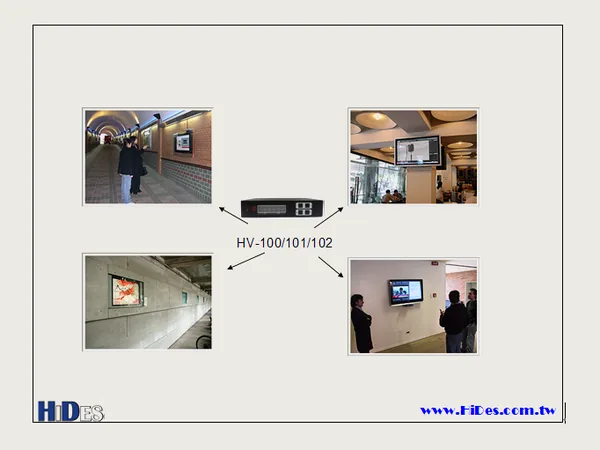

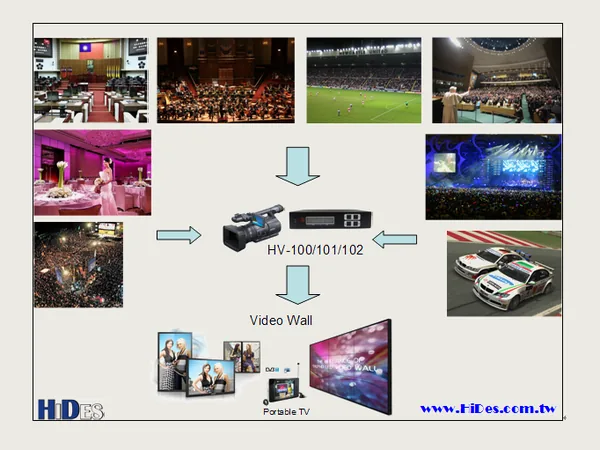

HV-102 是最具成本效益的方案，可將 HDMI 或 HD-SDI 影像傳送到數量不限的標準電視，無須任何特殊轉接設備。
6 MHz · ISDB-T ARIB STD-B31 ISDB-Tb ABNT NBR 15601 · DC 9–24V Power Consumption 0.7A@12V
產品資料 — HV-102J
04 · DVB-T 全高清調製器
特色
- 01 Low

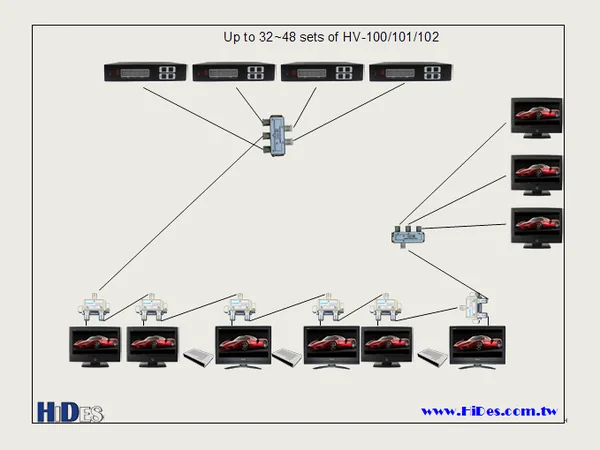

- 02 Cost HD Video Distribution
- 03 Support
- 04 Easy to Configure
- 05 More
- 06 Robust, Reliable and Long Distance
- 07 For
- 08 Differential
規格
General Specifications
- Input
- Video: HD-SDI, HDMI 1.3 (with HDMI loop-thru) Audio: HD-SDI or HDMI PCM audio-in (PCM audio-in supports up to stereo 96 KHz, 24bits)
- Compression
- Video: H.264 or MPEG2 Audio: AAC or MPEG
- Resolution
- Input / HD-SDI / 1920x1080x60P 1920x1080x30P 1280x720x60P 1280x720x30P
- Resolution — HDMI
- 720x480x30I (NTSC, D1) 720x576x25I (PAL, D1) 1280x720x24P 1280x720x50I/1280x720x50P 1280x720x60I/1280x720x60P 1920x1080x24P 1920x1080x50I/1920x1080x50P 1920x1080x60I/1920x1080x60P
- Resolution — Output — H.264
- 1920x1080x24P/1920x1080x25P 1600x1080x24P/1600x1080x25P/1600x1080x30P 1440x1080x24P/1440x1080x25P/1440x1080x30 1280x1080x24P/1280x1080x25P/1280x1080x30 1280x720x24P/1280x720x25P/1280x720x30P 704x576x25P (PAL, D1) 704x480x30P (NTSC, D1) 352x576x25P (PAL, Half D1) 352x480x30P (NTSC, Half D1) *Note 1&2
- Resolution — Output — MPEG2
- 1600x1080x24P 1440x1080x24P/1440x1080x25P/1440x1080x30P 1280x1080x24P/1280x1080x25P/1280x1080x30P 1280x720x24P/1280x720x25P/1280x720x30P 704x576x25P (PAL, D1) 704x480x30P (NTSC, D1) 352x576x25P (PAL, Half D1) 352x480x30P (NTSC, Half D1) *Note 1&2
- Power
- DC 9–24V Power Consumption 0.7A@12V
- Dimension WxDxH
- 195mmx125mmx40mm
- Weight
- 735g
- Operating Temperature
- -10°C ~ 60°C
Digital TV RF Transmitter Specifications
- TV Standard — HV-102J
- ISDB-T ARIB STD-B31 ISDB-Tb ABNT NBR 15601
- TV Standard — RF connector
- 75-Ω F-type connector and two-wire terminal for twisted pairs (differential RF output)
- Bandwidth — HV-102J
- 6 MHz
- Bandwidth — FFT — HV-102J
- 2K, 4K, 8K
- FFT — Code rate
- 1/2, 2/3, 3/4, 5/6, 7/8
- Guard interval
- 1/4, 1/8, 1/16 or 1/32
- Frequency range
- 50–950 MHz, 1200–1350 MHz step size 1 KHz ISDB-T channels: (STD-B21) UHF band: UHF 13ch~62ch VHF band VHF 1ch~12 ch MID band c13ch~c22 ch SHB band c23ch~c63 ch
- Segment & Layer — HV-102J
- 13 Seg or 1 Seg
- Segment & Layer — Time Interleaver — HV-102J
- Not supported
- Time Interleaver — RF Output Level
- 50-950 MHz -3 dBm (105 dBuV) typically 1200-1350 MHz -30~-40 dBm (68–78 dBuV) typically (Differential output less by 6–7 dB)
- Digital Gain/Attenuator for Fine Tuning
- Range: +5 dB~-10 dB , Step size 1 dB
- MER
- 50–950 MHz, 35 dB Typically 1200–1350 MHz, 30 dB Typically
- Spectrum Shoulder (Adjacent channel)
- 45 dB
Phase noise
- Carrier Suppression
- >42 dB
- Note1: output
- Note2: For VGA-input,
