13 cm Up-Converter
RF in 100–1300 MHz → RF out 2365–2500 MHz
08 · Up / Down Converter
Features
- 01
Built for QO-100 — Good for QO-100 , the first geostationary satellite with a HamRadio transponder. - 02 Configurable local oscillator — Default 1968MHz for 70cm IF signal, configurable by the customer from 1050MHz to 2700MHz in 1kHz step. Local Oscillator TK stability 2.5ppm (-30°…+75°C); for even more stability, an external 10MHz input is available.
- 03 Two IF input versions — check before ordering
— -15dBm and +20dBm IF version (please check your version before using it). Version 1 for multi-mode SSB CW FM ATV D-ATV , with input around -15dBm. Version 2 for SSB CW FM, with input around +20dBm (attenuator on PCB included). Please note the version you would like to buy. - 04
Rx/ — For the Rx <---> Tx switch, please use the IF signal.Tx switching - 05 HPA2225 — companion 13cm band high gain PA — Amplification of signals with all types of modulation. Very suitable for transmitters with very low RF transmission output power (under 1mW output), such as Adalm Pluto or similar. The output port is protected by a circulator.
Specifications
BU500 specification
RF-in - 100~1300MHz
- Local Oscillator
- Default 1968MHz for 70cm IF signal; 1050MHz to 2700MHz (configurable by customer in 1kHz step)
- Local Oscillator TK stability
- 2.5ppm (-30°…+75°C); external 10MHz input available for even more stability

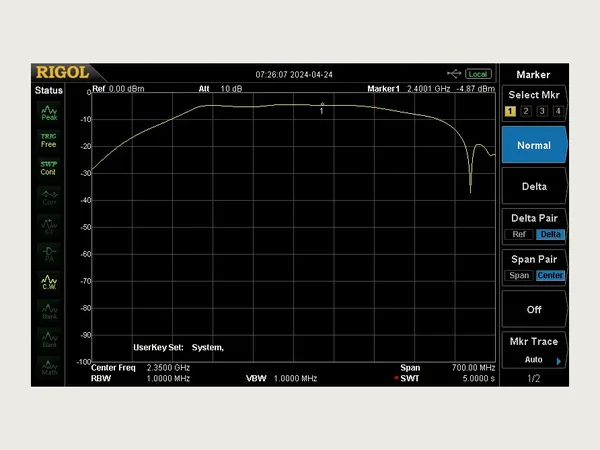

RF-output - 2365~2500MHz
- Conversion Gain
- > 34dB
- Output power
1700mW (SSB CW FM ATV FMATV); 200mW ( DVB-T DVB-S )- DC power adaptor
- 12V 1A (9V…13.8V)
- IF input version
- -15dBm and +20dBm IF version

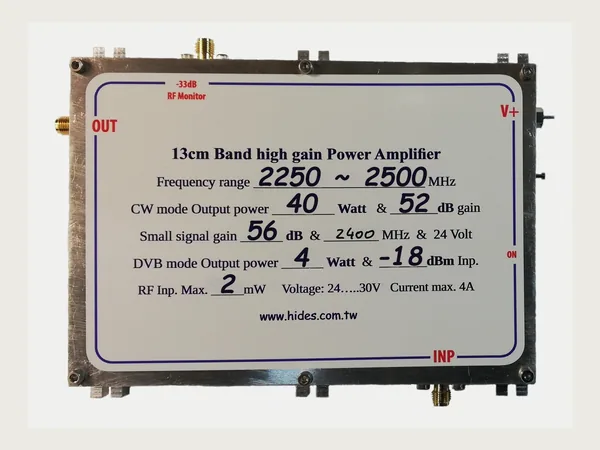

HPA2225 13cm band high gain PA
- Bandwidth
- 2200…2500MHz
- Gain
- >50dB & 40,0W output
- Small signal gain
- >54dB
- CW mode output
- up to 40,0 Watt
- Output port
- Protected by circulator
- INP / OUT / RFmonitor connector
- SMA female
- RF input power max.
- 2mW
- Voltage
- 24…30 Volt, typical 28V, Icc 4 Amper max.
- For the Rx <---> Tx switch, please use IF signal.
-
-15dBm and +20dBm IF version (please check your version before using it). Version 1 for multi-mode SSB CW FM ATV D-ATV , with input around -15dBm. Version 2 for SSB CW FM, with input around +20dBm (attenuator on PCB included). Please note the version you would like to buy.
