HV-100E Series

Full HD AV Sender / DVB-T Modulator

HV-100 is the most cost-effective solution to distribute HDMI or composite (CVBS) video to unlimited standard TV's without requiring any special adapter.

1/2/3/4/5/6/7/8 MHz · DVB-T EN-300 744 · DC 9–24V Power Consumption 0.7A@12V

eBay store hides168 ↗ Original product page →

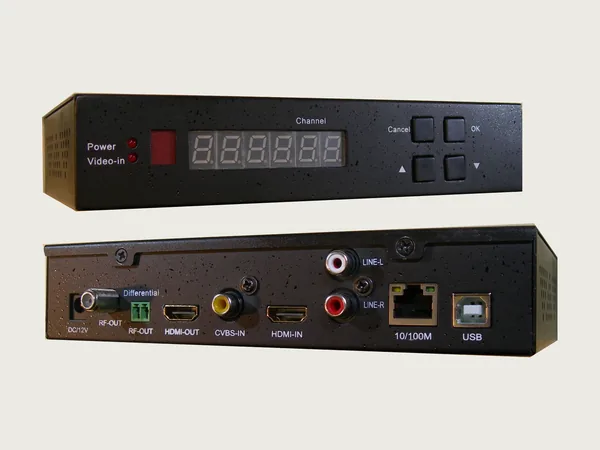

HV-100E Series Full HD AV Sender / DVB-T Modulator

Datasheet — HV-100E Series

04 · DVB-T Full HD Modulator Box

Features

  • 01 Low Cost HD Video Distribution
  • 02 Flexible Bandwidth Option
  • 03 UART Digital Data Mux
  • 04 Video Streaming and Web Management
  • 05 Easy to Configure
  • 06 Robust, Reliable and Long Distance
  • 07 Daisy-chain Connection (Bus-Topology)

Specifications

General Specifications:

Input
Video: CVBS, HDMI 1.3 (with HDMI loop-thru) Audio: Stereo line-in or HDMI PCM audio-in (HDMI PCM audio-in supports up to stereo 96 KHz, 24bits)
Compression
Video: H.264 or MPEG2 Audio: AAC or MPEG
Resolution
Input / CVBS / 720x480x30I (NTSC, D1) 720x576x25I (PAL, D1)
Resolution — HDMI
720x480x30I (NTSC, D1) 720x576x25I (PAL, D1) 1280x720x24P 1280x720x50I/1280x720x50P 1280x720x60I/1280x720x60P 1920x1080x24P 1920x1080x50I/1920x1080x50P 1920x1080x60I/1920x1080x60P
Resolution — Output — H.264
1920x1080x24P/1920x1080x25P 1600x1080x24P/1600x1080x25P/1600x1080x30P 1440x1080x24P/1440x1080x25P/1440x1080x30P 1280x1080x24P/1280x1080x25P/1280x1080x30P 1280x720x24P/1280x720x25P/1280x720x30P 704x576x25P (PAL, D1) 704x480x30P (NTSC, D1) 352x576x25P (PAL, Half D1) 352x480x30P (NTSC, Half D1) *Note
Resolution — Output — MPEG2
1280x1080x24P/1280x1080x25P/1280x1080x30P 1280x720x24P/1280x720x25P/1280x720x30P 704x576x25P (PAL, D1) 704x480x30P (NTSC, D1) 352x576x25P (PAL, Half D1) 352x480x30P (NTSC, Half D1) *Note
Power
DC 9–24V Power Consumption 0.7A@12V
Dimension WxDxH
195mmx125mmx40mm
Weight
735g
Operating Temperature
-10℃ ~ 60℃

Digital TV RF Transmitter Specifications:

TV Standard — HV-100E
DVB-T EN-300 744
TV Standard — HV-100J
ISDB-T ARIB STD-B31 ISDB-Tb ABNT NBR 15601
RF connector
75-Ω F-type connector and two-wire terminal for twisted pairs (differential RF output)
Bandwidth — HV-100E
1/2/3/4/5/6/7/8 MHz
Bandwidth — HV-100J
6 MHz
FFT — HV-100E
2K, 8K
FFT — HV-100J
2K, 4K, 8K
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
Guard interval
1/4, 1/8, 1/16 or 1/32
Frequency range
50–950 MHz, 1200–1350 MHz step size 1 KHz DVB-T channels: VHF 6M BW/UHF 6M BW: Channel: CH7~CH83 VHF 7M BW/UHF 7M BW: Channel: CH5~CH69 VHF 8M BW/UHF 8M BW: Channel: CH5~CH69 ISDB-T channels: (STD-B21) UHF band: UHF 13ch~62ch VHF band VHF 1ch~12 ch MID band c13ch~c22 ch SHB band c23ch~c63 ch
Segment & Layer — HV-100E
n/a
Segment & Layer — HV-100J
13 Seg or 1 Seg
Time Interleaver — HV-100E
n/a
Time Interleaver — HV-100J
Not supported
RF Output Level
50-950 MHz -3 dBm (105 dBuV) typically (Differential output less by 6–7 dB) HV-100EH: (HV-100E HAM TV version) 1200-1350 MHz -18~-20 dBm (88–90 dBuV) typically Without Differential output
Digital Gain/Attenuator for Fine Tuning
range: +5 dB~-10 dB , Step size 1 dB
MER
50–950 MHz, 35 dB Typically 1200–1350 MHz, 25 dB Typically (HV-100EH)
Spectrum Shoulder (Adjacent channel)
45 dB
Phase noise
<-92dBc @ 10 kHz
Carrier Suppression
>42 dB
  • Note: output formats supported depend on the video input formats. The frame rate should be consistent and the encoded video frame size should be less or equal to the original input.
  • There could be MER loss in high gain/attenuation level.
