Professional 4-band Full HD Digital TV Modulator
Features
- 01 High Performance Wide Frequency Range Support — Direct digital conversion to 100..2500 MHz for excellent signal quality. Professional grade modulation error rate (MER).

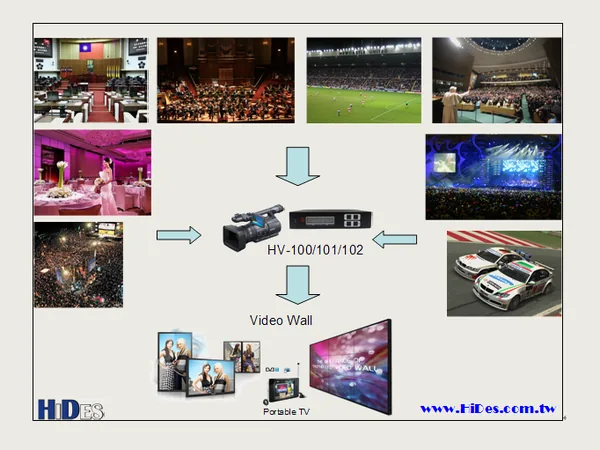

- 02 Low Cost HD Video Distribution — Compliant to existing HD TV sets, no extra adapter required, and no restriction on the number of receivers. All the peripherals like splitter, amplifier, connector…etc are the same as those for regular TV.
- 03 Versatile video inputs and formats
— Support HDMI/ DVI and composite (CVBS) video input. Besides H.264/MPEG2 HD, MPEG2 SD format is also supported and compliant to existing SD TV sets or STB's. - 04 Easy to Configure
— Channel number can be configured with the built-in keypad switch easily. More advanced configurations can be set from an external host like PC/NB or Tablet/ Pad thru USB interface. - 05 Robust, Reliable and Long Distance

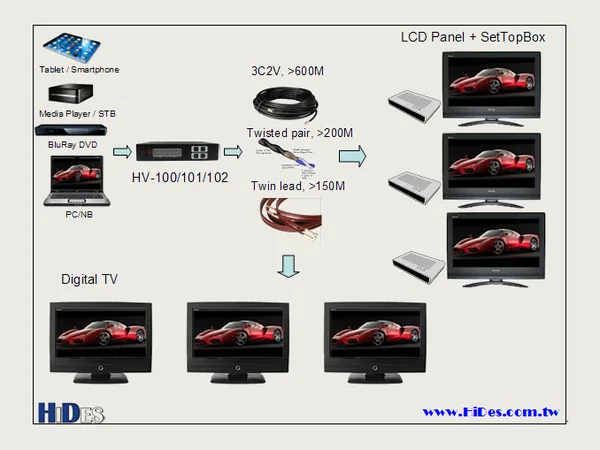

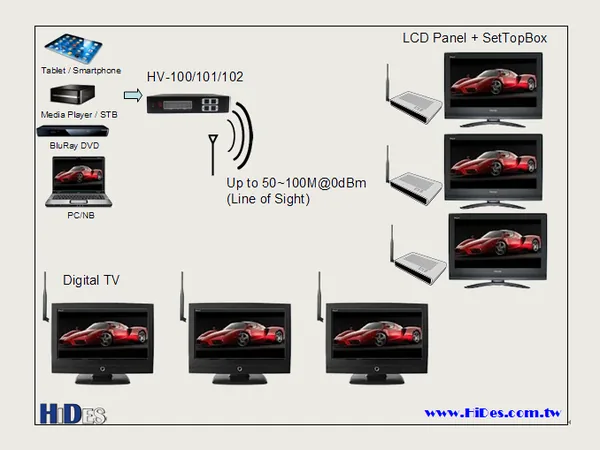

— Easily transmit 1080p video over a single 3C2V/RG59 cable for at least 500 meters long without adding any repeater. For wireless applications, the line of sight transmission distance may reach 50~100 meters at 0dBm RF radiation power and up to several kilo meters at 20 dBm . The real distance depends on the antenna design and receiver quality. Differential RF output is also available for RF signal distribution with twisted pairs (telephone or EthernetRJ-45 ) instead of heavy coaxial cables. - 06

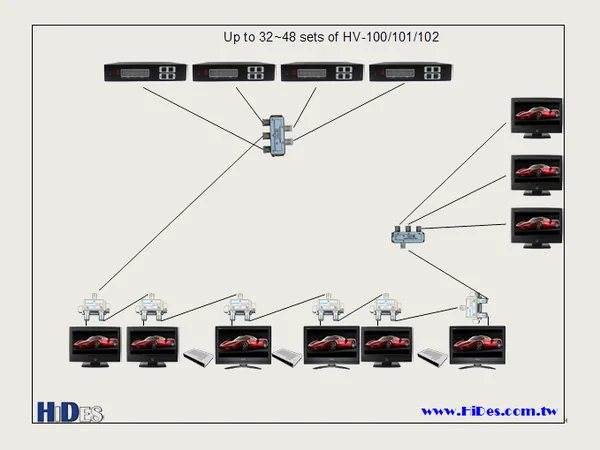

Daisy-chain Connection ( Bus-Topology )— Multiple HV-200 's with different channel configurations can share a single cable. It can dramatically reduce the cable deployment cost and effort. - 07 Real time protocol and Low latency
— No frame drop in QEF ( Quasi-Error-Free ) condition, and low transmission latency.
Specifications
General Specifications
- Input
Video: CVBS, HDMI 1.3 (with HDMI loop-thru ); Audio: Stereoline-in or HDMI PCMaudio-in (HDMI PCMaudio-in supports up to stereo 96kHz, 24bits)- Compression
- Video: H.264 or MPEG2; Audio: AAC or MPEG
- Resolution — Input (CVBS)
- 720x480x30I (NTSC, D1), 720x576x25I (PAL, D1)
- Resolution — Input (HDMI)
- 720x480x30I (NTSC, D1), 720x576x25I (PAL, D1), 1280x720x24P, 1280x720x50I/1280x720x50P, 1280x720x60I/1280x720x60P, 1920x1080x24P, 1920x1080x50I/1920x1080x50P, 1920x1080x60I/1920x1080x60P
- Resolution — Output (H.264)
- 1920x1080x25P, 1600x1080x24P/1600x1080x25P/1600x1080x30P, 1440x1080x24P/1440x1080x25P/1440x1080x30P, 1280x1080x24P/1280x1080x25P/1280x1080x30P, 1280x720x24P/1280x720x25P/1280x720x30P, 704x576x25P (PAL, D1), 704x480x30P (NTSC, D1), 352x576x25P (PAL, Half D1), 352x480x30P (NTSC, Half D1) *Note
- Resolution — Output (MPEG2)
- 1280x1080x24P/1280x1080x25P/1280x1080x30P, 1280x720x24P/1280x720x25P/1280x720x30P, 704x576x25P (PAL, D1), 704x480x30P (NTSC, D1), 352x576x25P (PAL, Half D1), 352x480x30P (NTSC, Half D1) *Note
- Power
- DC 9~24V, Power Consumption 0.7A@12V
- Dimension WxDxH
- 195mm x 125mm x 40mm
- Weight
- 735g
- Operating Temperature
- -10°C ~ 60°C
Digital TV RF Transmitter Specifications
- TV Standard
DVB-T EN-300 744,ISDB-T ARIBSTD-B31 ,ISDB-Tb ABNT NBR 15601- RF connector
75-Ω F-type connector andtwo-wire terminal for twisted pairs (differential RF output)Bandwidth — DVB-T 2/3/4/5/6/7/ 8 MHz Bandwidth — ISDB-T /-Tb 6 MHz - FFT
- 2K, 4K, 8K
- Code rate
- 1/2, 2/3, 3/4, 5/6, 7/8
- Guard interval
- 1/4, 1/8, 1/16 or 1/32
- Frequency range
100 .. 2500 MHz , tuning step 1kHzSegment & Layer — DVB-T - n/a
Segment & Layer — ISDB-T /-Tb - 13 Seg or 1 Seg
Time Interleaver — DVB-T - n/a
Time Interleaver — ISDB-T /-Tb - Not supported
- RF Output Level
-3~- 5 dBm (103-105 dBuV) @100-470 MHz; -5~-8 dBm (100-103 dBuV) @470-950 MHz; -14 dBm (94 dBuV) @950-1900MHz ; -18 dBm (90 dBuV) @1900-2500MHz Digital Gain/ Attenuator for Fine Tuning - Range: +0dB ~ -25dB, Step size 1dB
- MER
Typically, @- 5 dB attenuation by ADRF6755: >35dB@V-band ; >35dB@470-950 MHz; >33dB@950-1900MHz ; >30dB@1900-2500MHz - Spectrum Shoulder (Adjacent channel)
- 45dB
- Carrier Suppression
- >42dB
- Note: output formats supported depend on the video input formats. The frame rate should be consistent and the encoded video frame size should be less or equal to the original input.
-
There could be MER loss in high gain/ attenuation level. - Specifications are subject to change without prior notice.
